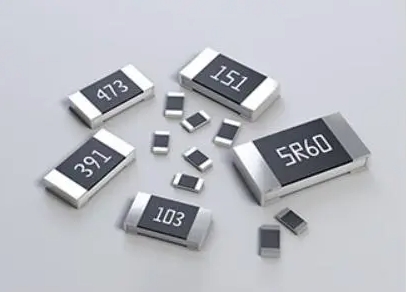

As one of the most widely used components in electronic circuits, the advantages of the 1206 chip resistor are mainly reflected in the following five aspects. Combined with specific application scenarios and technical parameters, its value can be further reflected:
1、 Size and space optimization
Moderate size: The 1206 package (3.2mm in length and 1.6mm in width) is considered a medium size in SMD components, taking into account the following characteristics:
Welding convenience: It is easier to manually weld or perform AOI testing than small packages such as 0603/0402, reducing production difficulty.
Space efficiency: Compared to large packages such as 1210/2512, it saves PCB area and is suitable for compact designs of portable devices such as smartphones and Bluetooth earphones.
Layout flexibility: In high-power circuits such as power modules and motor drives, 1206 resistors can be densely arranged without significantly increasing the board thickness, avoiding lamination problems caused by large components.
2、 Balance between power and performance
Wide power range:
Standard power: 0.25W (conventional models such as TRL120610FXXP05Z), meeting most consumer electronics needs.
High power models: With special designs such as thickened electrodes and alloy materials, they can reach up to 1W or even 3W (such as Yuanhui Electronics' 1206 alloy resistor), suitable for industrial power supplies and new energy battery management systems (BMS).
Advantages of thermal management:
Temperature rise control: Under a power of 1W, the 1206 resistor can control the temperature rise within a reasonable range (such as TGL series measured temperature rise ≤ 125 ℃) through PCB heat dissipation design (such as 2oz copper foil).
Impact resistance: Surge resistant models (such as TGL120610FXXP05Z) can withstand 100000 surge impacts (such as 20A/10 μ s pulses), suitable for transient high current scenarios such as motor starting and relay switching.
3、 Comprehensive coverage of application scenarios
Consumer Electronics:
Low cost solution: Basic models (such as ELR16FTXDXES) are used for mobile phone chargers and LED drivers, with a cost as low as $0.005/pcs.
High precision requirements: Medical equipment (such as electrocardiographs) should use low-temperature drift models (such as TRL120610FXXP05Z, temperature drift ± 50ppm/℃) to ensure signal acquisition accuracy.
Industrial and Automotive Electronics:
Sulfur resistant design: Chemical sensors and automotive fuel systems use sulfur resistant models (such as EAM16FTXXXDES) to prevent electrode corrosion and extend their lifespan by more than three times.
Vehicle regulation certification: The automotive OBC and frequency converter use EGM16FTXXXDES, which has passed AEC-Q200 certification and can withstand extreme temperatures ranging from -55 ℃ to+155 ℃.
In the field of new energy:
High power density: Yuanhui Electronics' 1206 alloy resistor (2W/3W) is used for energy storage inverters (PCS) and photovoltaic inverters, with a power density of 0.5W/mm ², far exceeding conventional models.
4、 Balancing Cost and Reliability
Cost effectiveness advantage:
Large scale production: Due to the high demand, the cost per unit of 1206 resistors is about 15% lower than that of 0603 packaging and 30% lower than that of 1210 packaging.
Long term stability: Brand models (such as Tianyi and Yineng) have passed MIL-STD-202 testing, with a predicted lifespan of 100000 hours (MTBF), reducing maintenance costs.
Reliability design:
Mechanical stress resistance: The 1206 package has a 40% increase in bending resistance compared to the 0402 package, making it suitable for vibration environments such as automotive electronics.
Moisture resistance: Some models (such as TSL120610FXXP05Z) use a three-layer coating process, with a moisture resistance level of JESD22-A113F standard, suitable for outdoor equipment.
5、 Supply Chain and Ecological Support
High standardization level: The 1206 package complies with the EIA-0201 standard, and global suppliers such as Vishay, ROHM, and Guoju provide compatible models to reduce supply chain risks.
Quick selection tool: Mainstream manufacturers (such as Tian'er) provide online parameter filtering tools, allowing users to quickly match models based on parameters such as resistance, power, and temperature drift (such as inputting 1206+5.6R+1W to filter out TRL120610F5R6P05Z).
Summary: The core advantages of 1206 surface mount resistors
Dimensional advantages reflected
Moderate size and volume balance soldering convenience and space efficiency, suitable for most PCB layouts
Power range of 0.25W-3W covers multiple scenarios, with excellent thermal management and impact resistance performance
Covering all fields of consumer electronics, industry, automotive, and new energy, with sulfur resistant/automotive grade models to meet special environmental requirements
High cost-effectiveness, large-scale production reduces costs, long-term reliability reduces maintenance costs
Standardized packaging and global supplier support for supply chain, convenient selection and procurement
Select the model according to specific needs (such as high-precision Tian Er TRL series, anti surge Tian Er TGL series, anti sulfurization Yi Neng EAM series), which can maximize the advantages of the 1206 resistor.
